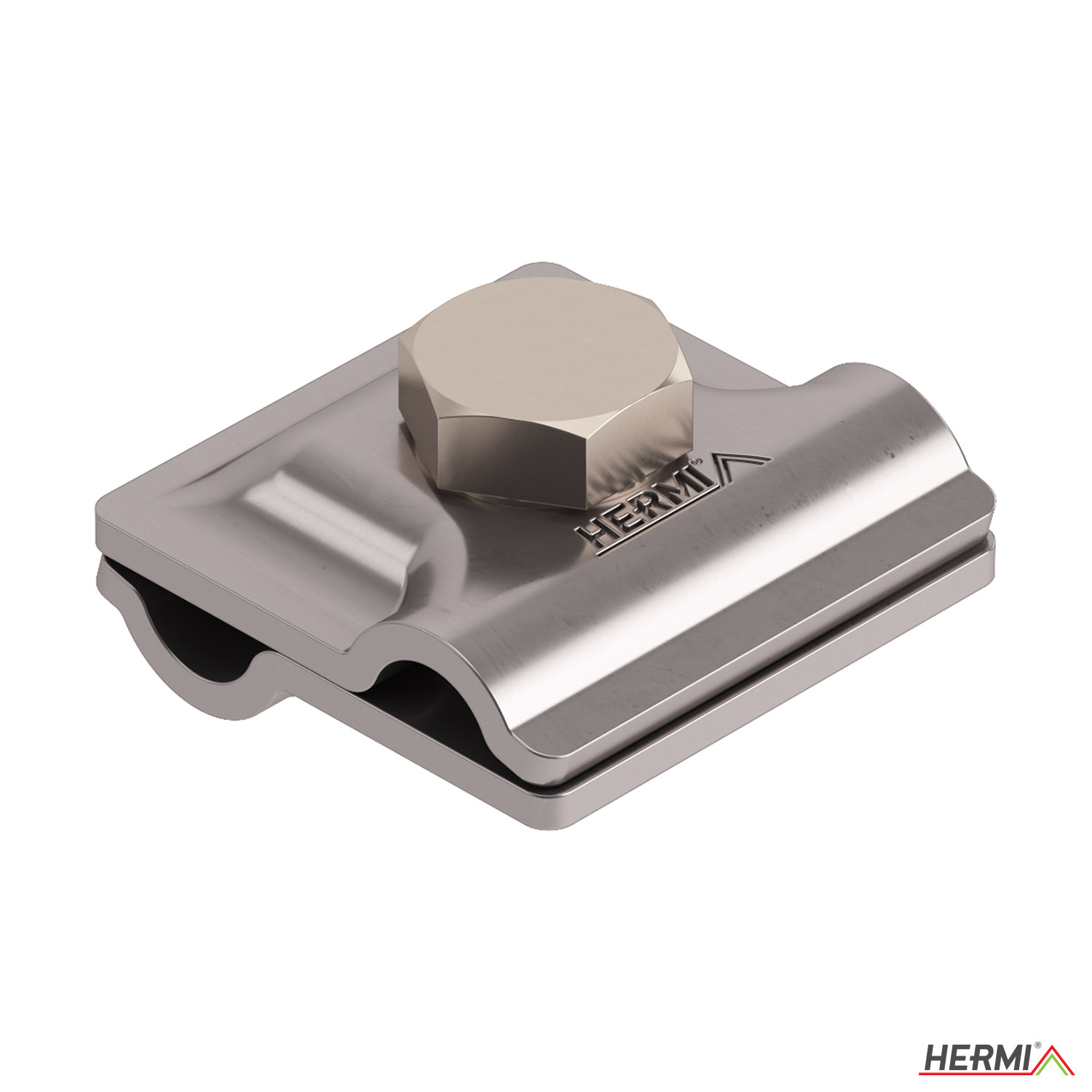

KON04 A SIMPLE 40x40 Rf 8-10mm

Code: 50522

KON04 A SIMPLE 40x40 Rf 8-10mm

Code: 50522

Bonding clamp, consisting of 2 plates 40 x 40 mm, screw and M10 nut, designed for carrying out joints above the ground between round conductors Ø8 – 10 mm and metal parts.

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL

	LABEL	MATERIAL
	Rf	stainless steel
	Rf*H4	acid-resistant stainless steel
	Cu	copper
	Al	aluminium
	Fe	steel
	FeZn	galvanized steel
	FeZn-H	hot-dip galvanized sheet metal
	KFe	polypropylen
	FeCu	copper coated steel
	Me	brass
	PE	polyetilen - UV resistant
	N	nylon – UV resistant
	P-SV	polyester with UV resistant glass fibres
	pvc	electrostatic plastic-coated
	PVC	resistant synthetic material
	Wood	wood
	Concrete	concrete
	Ltž	cast iron
	CuSn	tinned copper
	PP	polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL	DESCRIPTION
Φ	round cross-section conductor
P	rectangular cross-section conductor

CONDUCTOR ATTACHMENT ON FASTENER

LABEL	DESCRIPTION
N	attachment with nylon attachment elements
PE	attachment with polyetilen attachment elements
K	click attachment system
V	screw attachment
*	upon request

Labels legend

Become our partner

Our customers have access to more than 30.000 products

Bonding clamp, consisting of 2 plates 40 x 40 mm, screw and M10 nut, designed for carrying out joints above the ground between round conductors Ø8 – 10 mm and metal parts.

Material	Stainless steel 304 (V2A)
Surface protection	Other
Type of connector	Clamp connector
Type of fastening screws	Hexagon screw
Diameter round conductor 1	8-10 mm
Diameter round conductor 2	8-10 mm
