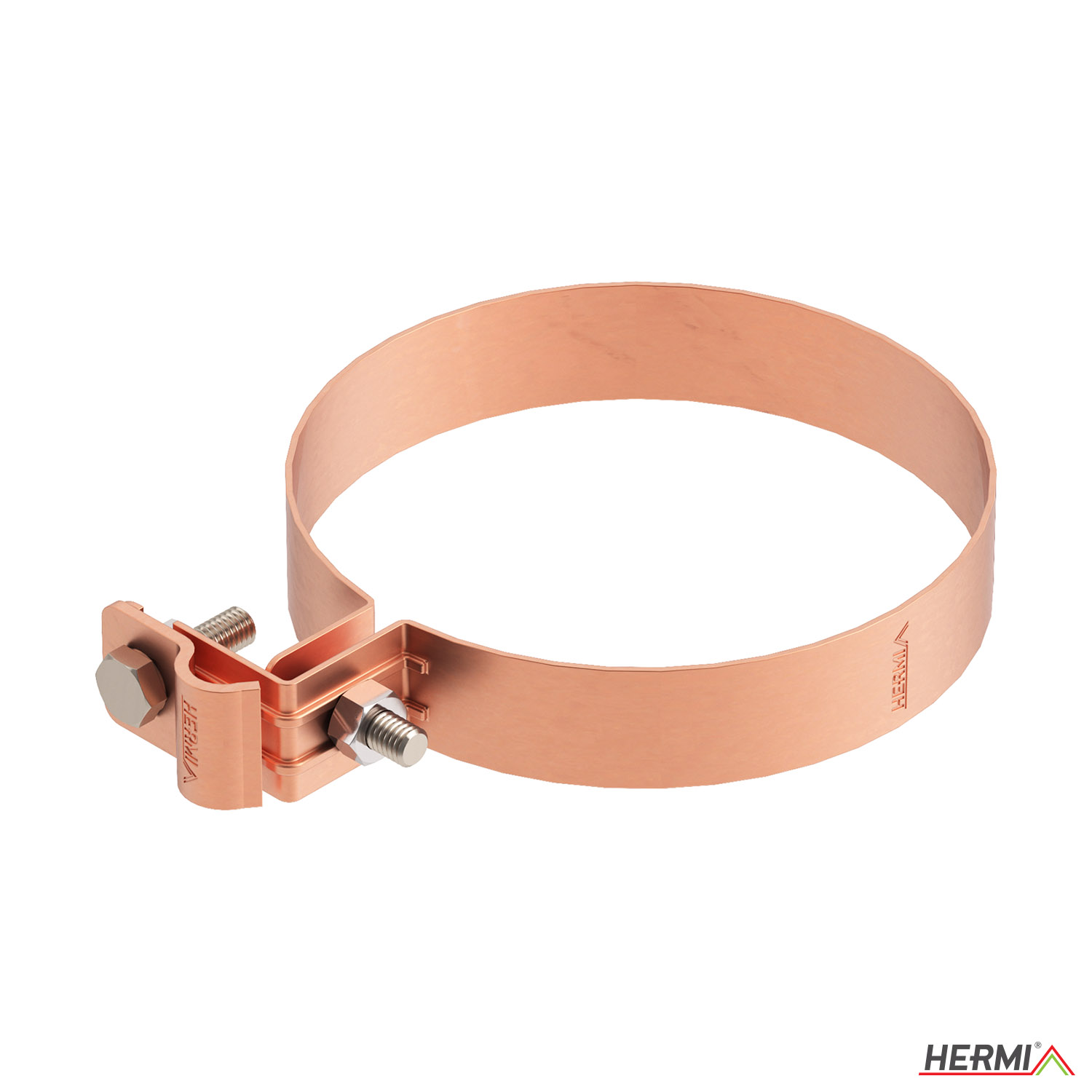

KON11 A fi 80 Cu-V 8-10 mm pipe bonding clamp

Code: 700100

KON11 A fi 80 Cu-V 8-10 mm pipe bonding clamp

Code: 700100

KON11 A pipe bonding clamps, made in one piece, designed for the attachment of round conductors to sink pipes of different dimensions. The conductor is screwed to the pipe bonding clamp.
Weight: 0.09

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
KON11 A pipe bonding clamps, made in one piece, designed for the attachment of round conductors to sink pipes of different dimensions. The conductor is screwed to the pipe bonding clamp.
Mounting type conductor With screw clamp
Material of holder Copper
Material of carrier Copper
Suitable for diameter round conductor 8-10 mm
Material base Copper
Pipe chucking range 80 mm
700100_KON11_A_TECHNICAL_DATA_SHEET.pdf
ISO9001_&_ISO14001_en.pdf
