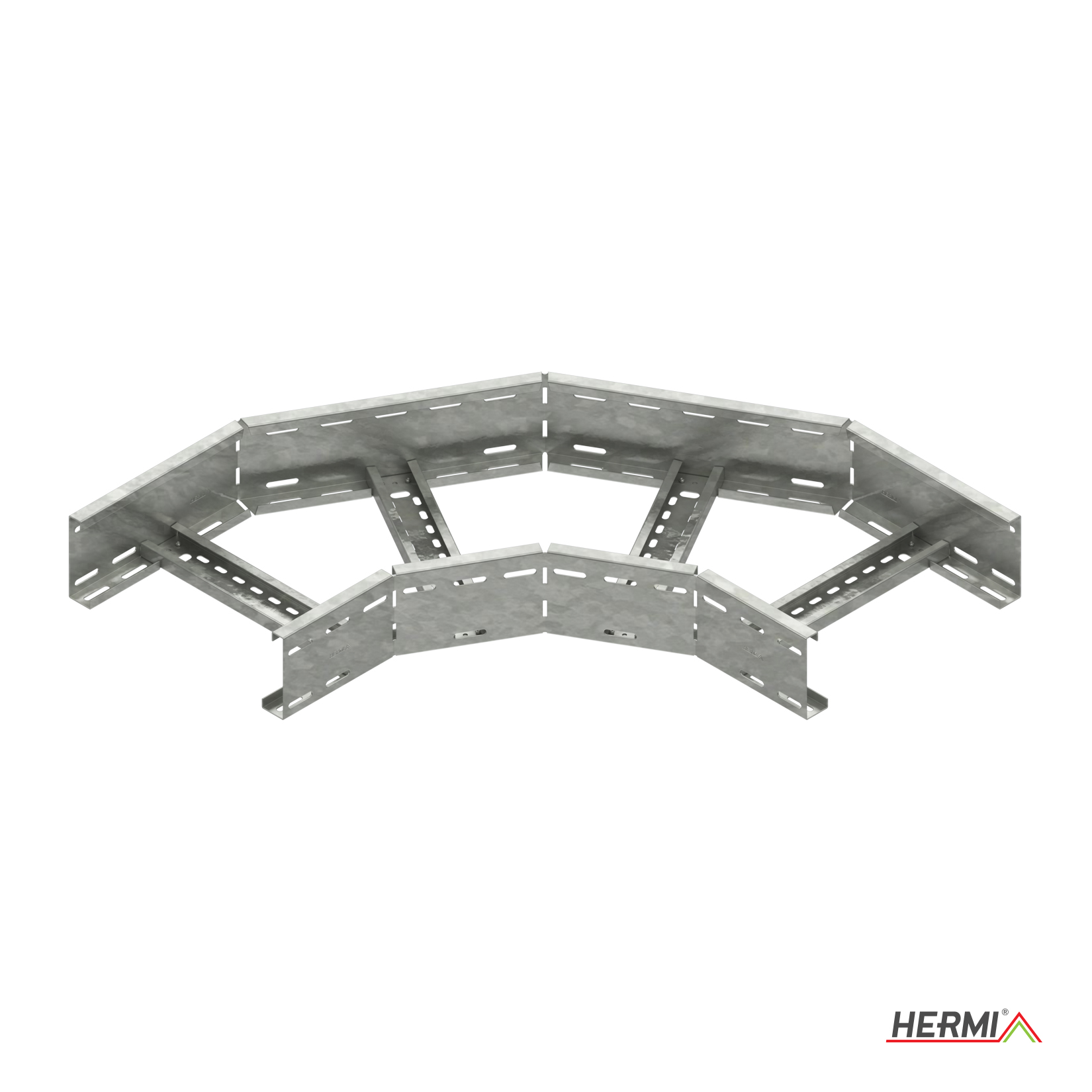

The PKL-KO 90° elbow is bolted on the KL cable ladder with the PKL-FS fixed connecting element, which is installed on the outer side with PP M6x12 (8x) connection bolts and PP M6 (8x) flange nuts. Elbow radius is 300 mm.
| Material | Stainless steel |
| Colour | Other |
| Model | Without connector |
| Surface protection | Other |
| Suitable for circuit integrity | False |
| Cable ladder width | 400 mm |
| Cable ladder height | 100 mm |
| Side wall perforation | True |
| Type of rung | Perforated profile |
| Hinging | False |
| Material quality | Stainless steel 304 (1.4301) |
| Change of direction | Horizontal |
| Type of side joist | Profile (open) |
| Bend model | Other |
| Angle | 90° |
