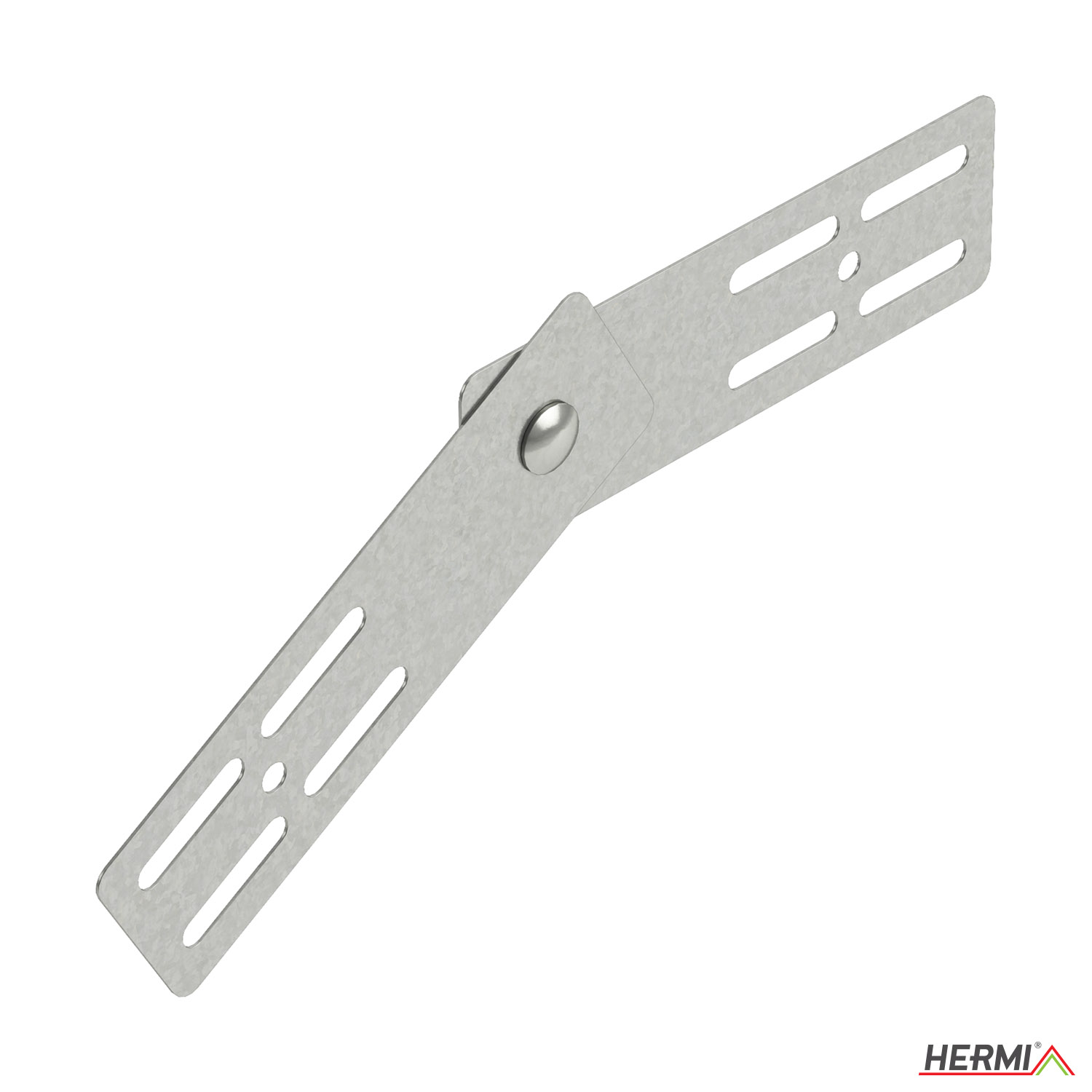

PKP-GS 60 Flex. connector FeZn

Code: 88701171

PKP-GS 60 Flex. connector FeZn

Code: 88701171

The mounting is carried out with PPKP M6x12 (8x) connection bolts and PPKP M6 (8x) flange nuts.
Weight: 0.09

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL


LABEL
MATERIAL
Rf
stainless steel
Rf*H4
acid-resistant stainless steel
Cu
copper
Al
aluminium
Fe
steel
FeZn
galvanized steel
FeZn-H
hot-dip galvanized sheet metal
KFe
polypropylen
FeCu
copper coated steel
Me
brass
PE
polyetilen - UV resistant
N
nylon – UV resistant
P-SV
polyester with UV resistant glass fibres
pvc
electrostatic plastic-coated
PVC
resistant synthetic material
Wood
wood
Concrete
concrete
Ltž
cast iron
CuSn
tinned copper
PP
polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL
DESCRIPTION
Φ

round cross-section conductor

P

rectangular cross-section conductor


CONDUCTOR ATTACHMENT ON FASTENER

LABEL

DESCRIPTION

N

attachment with nylon attachment elements

PE

attachment with polyetilen attachment elements

K
click attachment system
V
screw attachment
*
upon request
Labels legend
The mounting is carried out with PPKP M6x12 (8x) connection bolts and PPKP M6 (8x) flange nuts.
Material Steel
Length 280 mm
Colour Other
Model Length- and angle joint
Surface protection Continuously galvanized
Stainless steel, pickled NO
Suitable for circuit integrity No
Suitable for wire mesh tray no
Suitable for cable ladder no
Suitable for cable tray yes
Type of connection Screw connector
Hinged joint horizontal yes
Hinged joint vertical no, no
Suitable for cable management system width 50-600 mm
88701171_PKP-GS_60_TECHNICAL_DATA_SHEET.pdf
ISO9001_&_ISO14001_en.pdf
