SOL-S03-T connecting element T-vijak M8x25

Code: 88000169

SOL-S03-T connecting element T-vijak M8x25

Code: 88000169

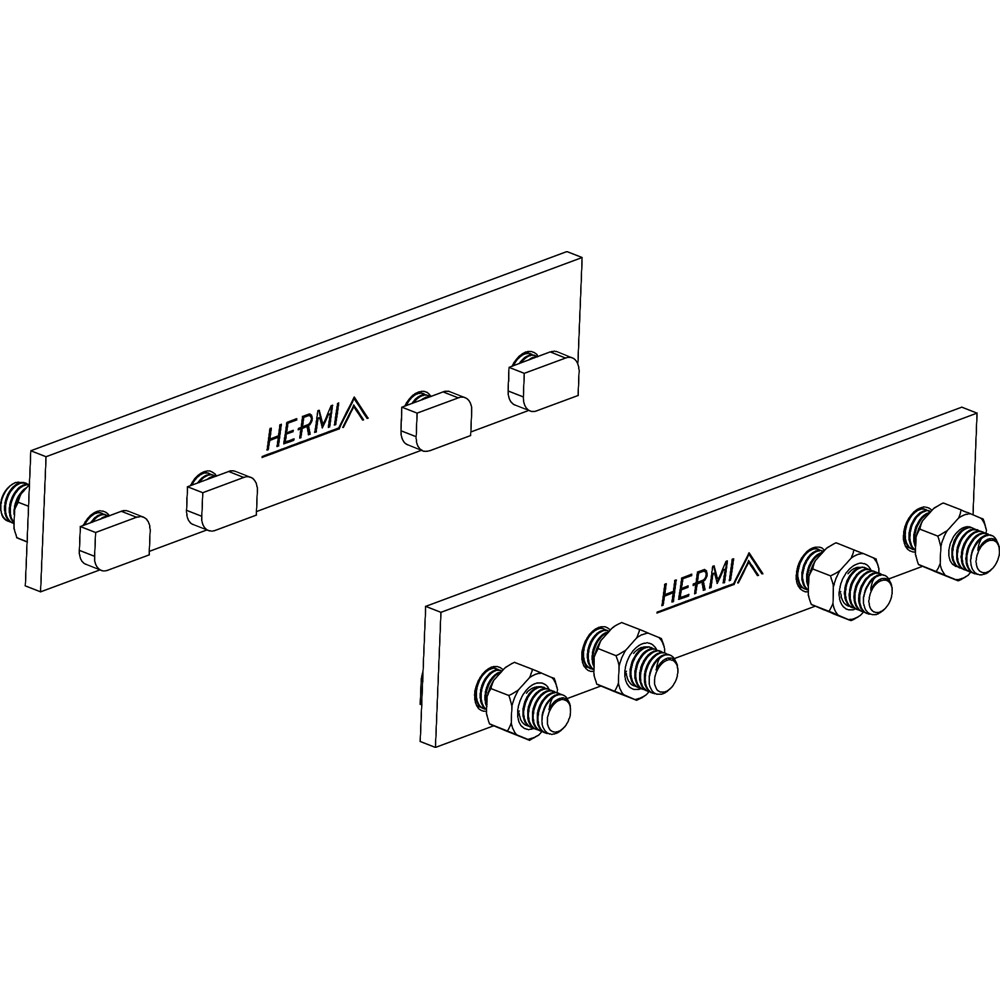

Longitudinal connecting element, aluminium, for extending the SOL‑P30 mounting profiles, in a set together with M8 T-bolts and nuts.

TECHNICAL DATA AND STANDARDS

LEGEND

MATERIAL

	LABEL	MATERIAL
	Rf	stainless steel
	Rf*H4	acid-resistant stainless steel
	Cu	copper
	Al	aluminium
	Fe	steel
	FeZn	galvanized steel
	FeZn-H	hot-dip galvanized sheet metal
	KFe	polypropylen
	FeCu	copper coated steel
	Me	brass
	PE	polyetilen - UV resistant
	N	nylon – UV resistant
	P-SV	polyester with UV resistant glass fibres
	pvc	electrostatic plastic-coated
	PVC	resistant synthetic material
	Wood	wood
	Concrete	concrete
	Ltž	cast iron
	CuSn	tinned copper
	PP	polypropylen

CONDUCTOR DIMENSIONS

(appropriateness of holders for a certain profile of conductors)

LABEL	DESCRIPTION
Φ	round cross-section conductor
P	rectangular cross-section conductor

CONDUCTOR ATTACHMENT ON FASTENER

LABEL	DESCRIPTION
N	attachment with nylon attachment elements
PE	attachment with polyetilen attachment elements
K	click attachment system
V	screw attachment
*	upon request

Labels legend

Contact us

Become our partner

Our customers have access to more than 30.000 products

Longitudinal connecting element, aluminium, for extending the SOL‑P30 mounting profiles, in a set together with M8 T-bolts and nuts.
