Automatic Servis
Celje, Slovenia

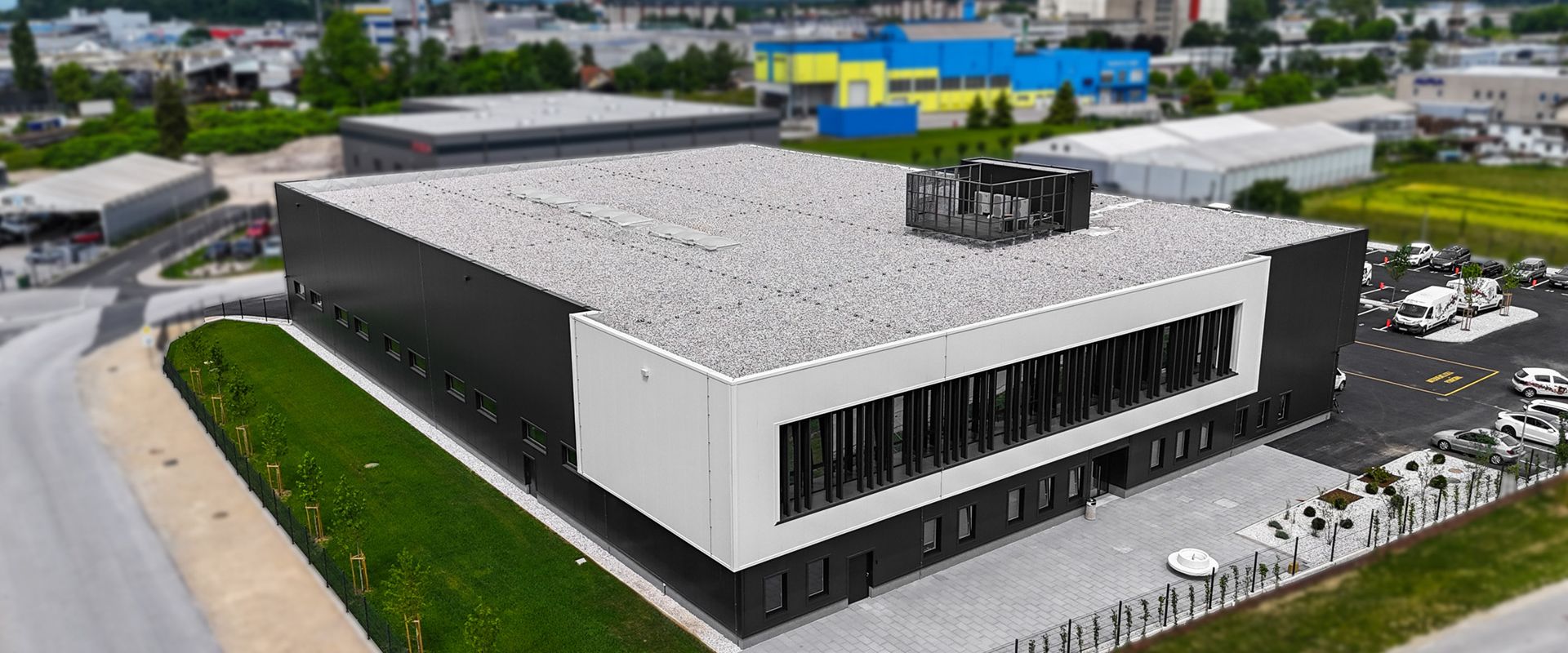

Automatic Servis, the leading provider of vending services in the Slovenian market, has built a new business and warehouse facility in the industrial zone in Celje. Hermi's solutions played a key role in the construction of the facility – its cable tray systems and lightning protection ensure a reliable and secure infrastructure, essential for the smooth operation of the centre.
To distribute electrical and other cables, the installer used nearly 750 metres of Hermi cable trays in the 2,162 m² building. This included 550 metres of the innovative Hermi Fast Klick® galvanised sheet metal trays. The Fast Klick® system allows for quick installation and interconnection without bolts or special tools, significantly reducing both installation time and labour costs. Cable trays of various widths (ranging from 50 mm to 300 mm), lengths (2 and 3 metres), and sheet metal thicknesses were used to adapt to the room layout and to the expected cable volume. The cable trays are installed at multiple levels.

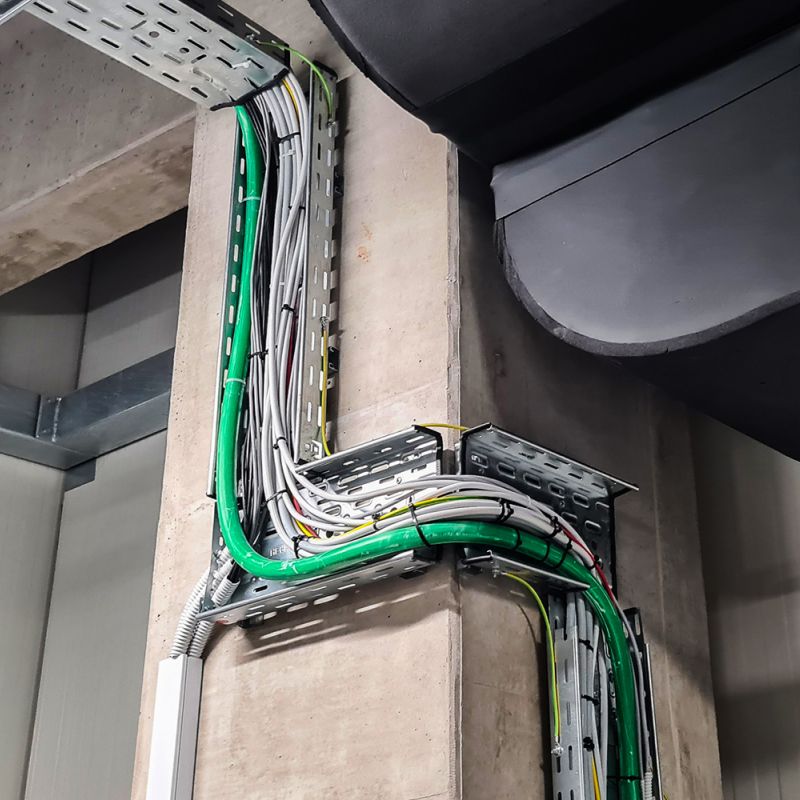

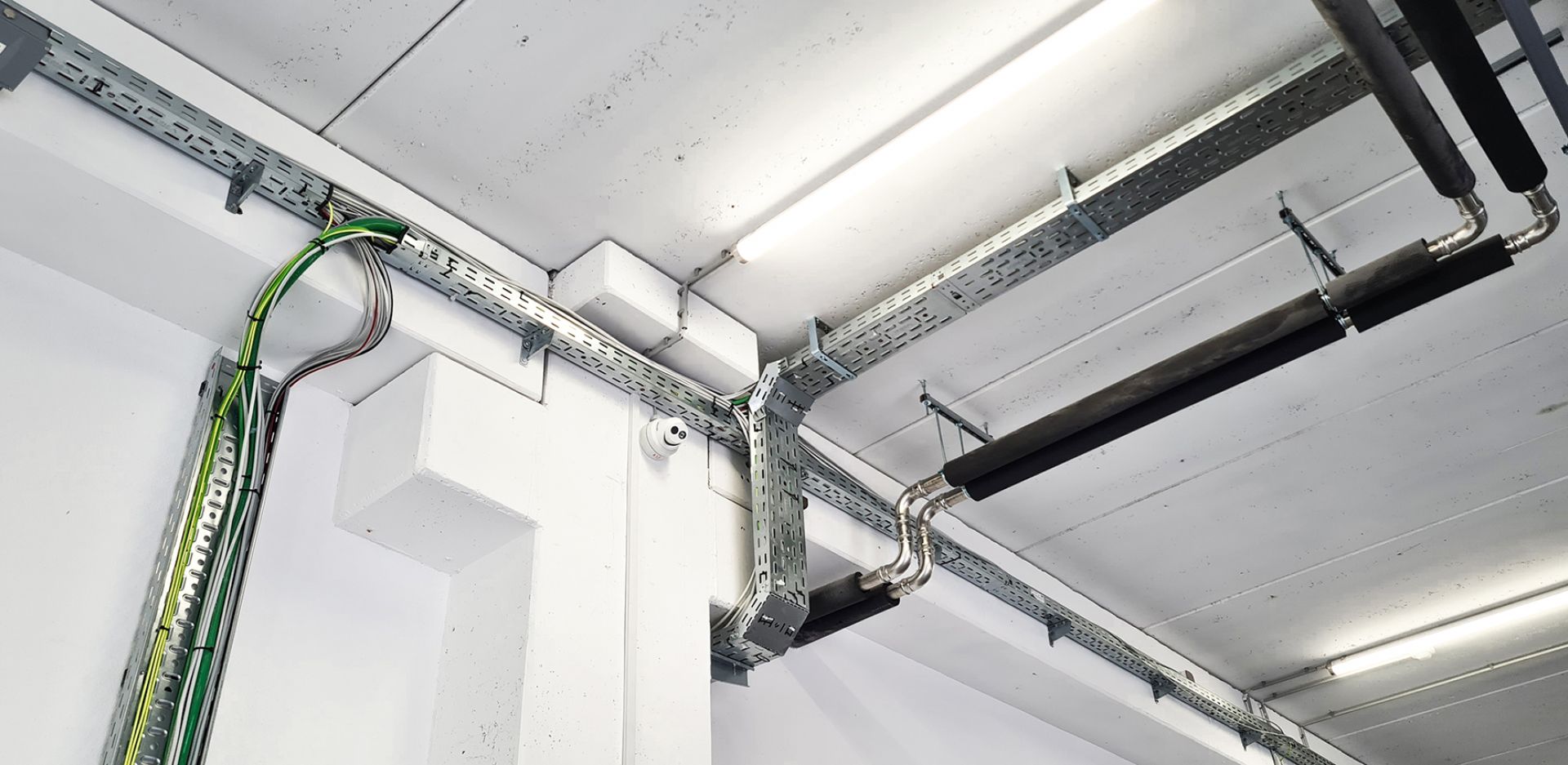

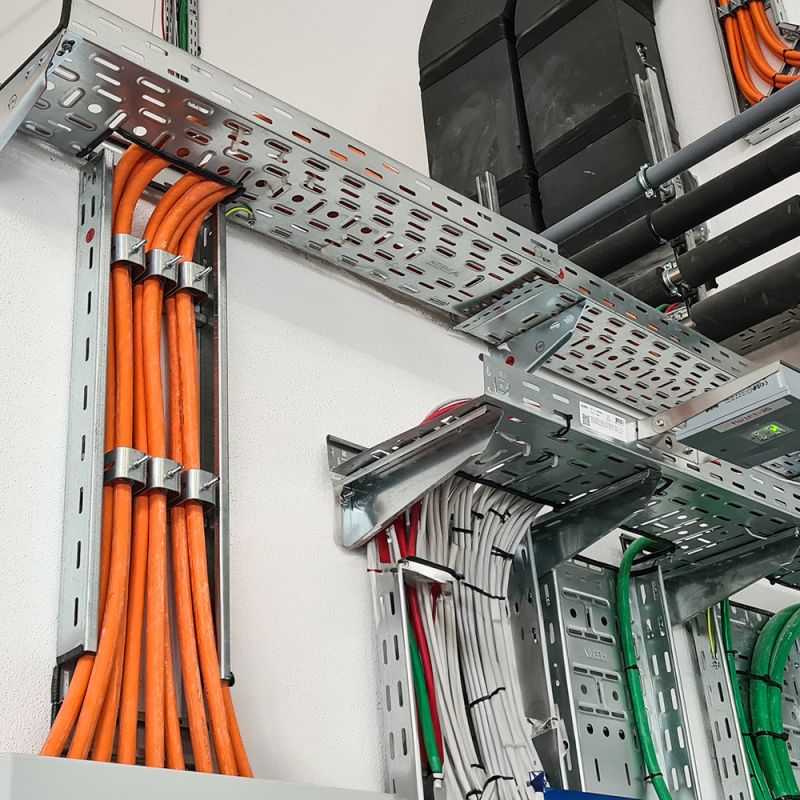

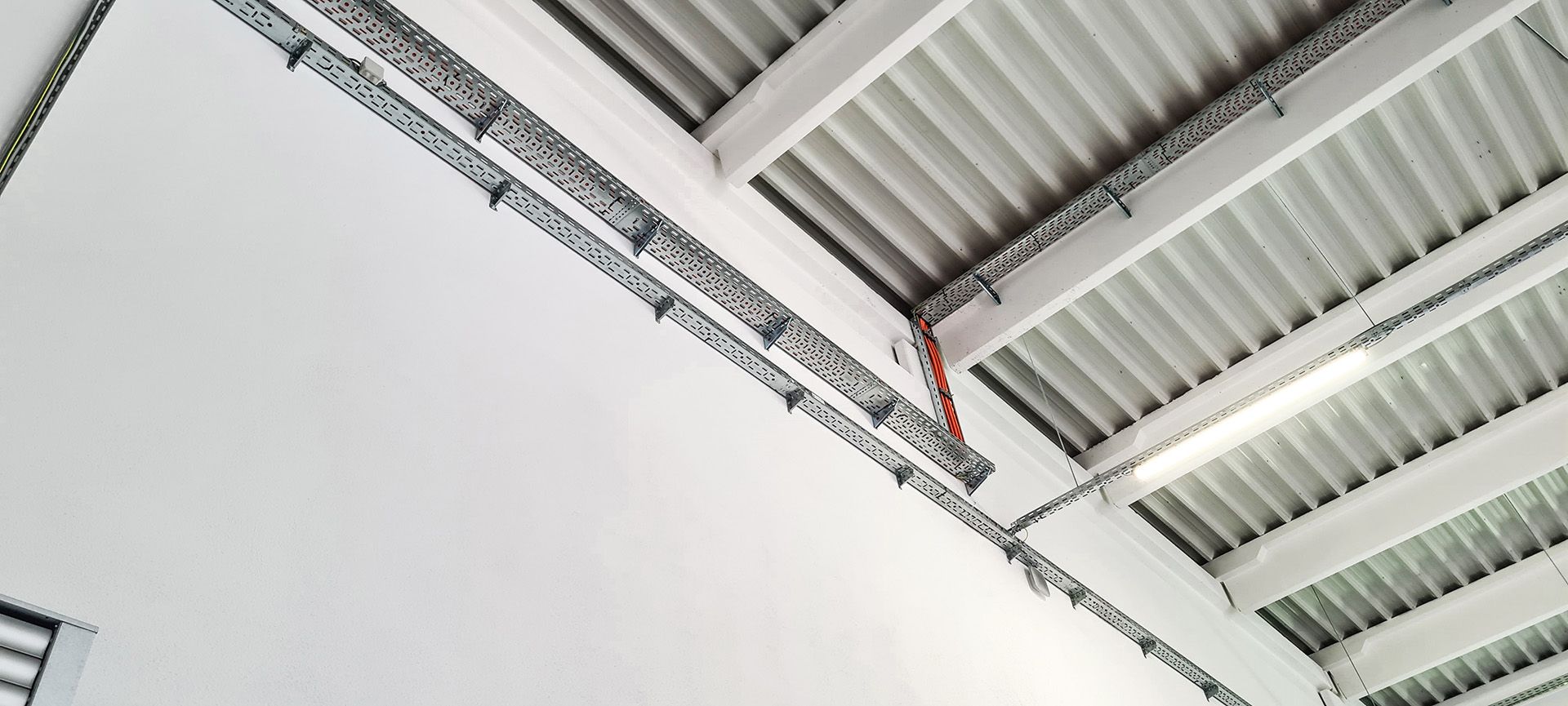

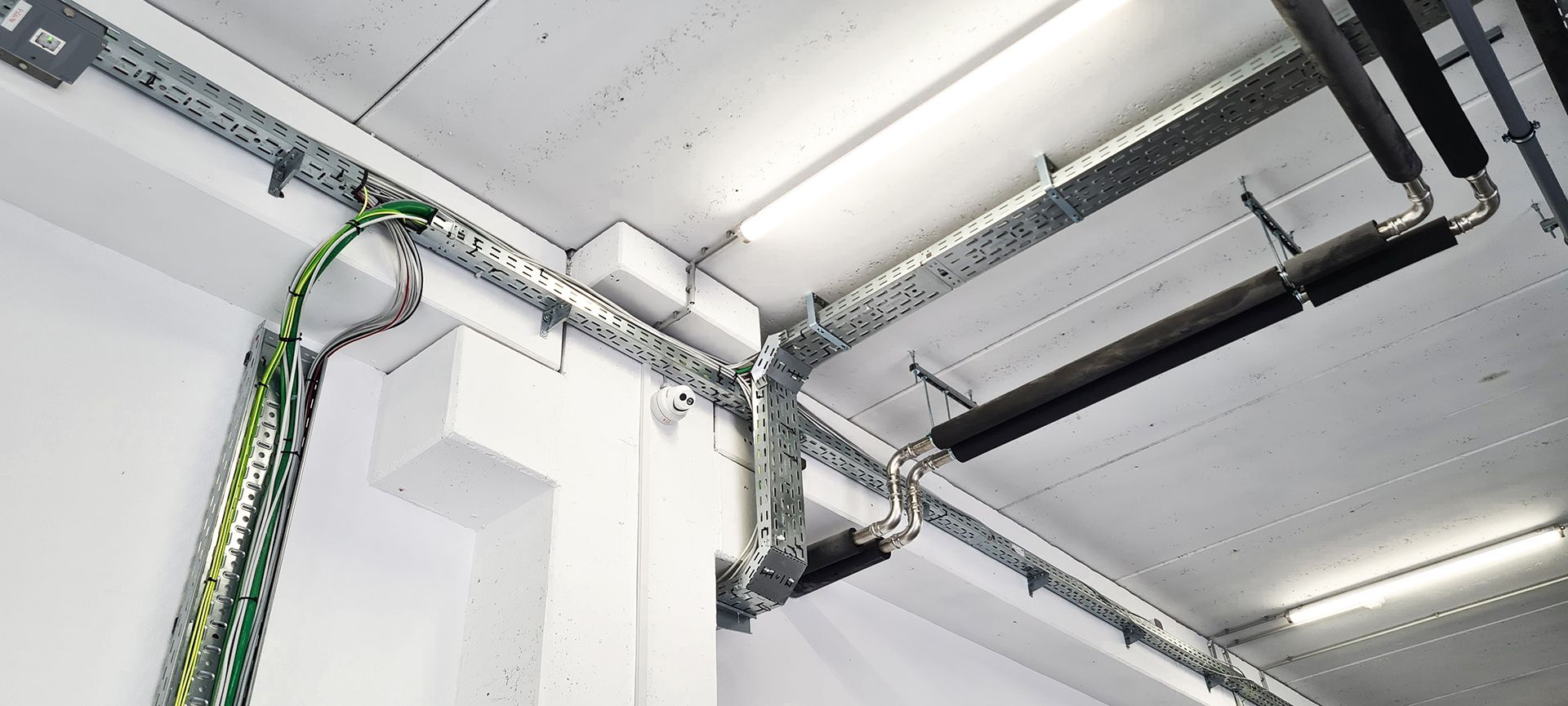

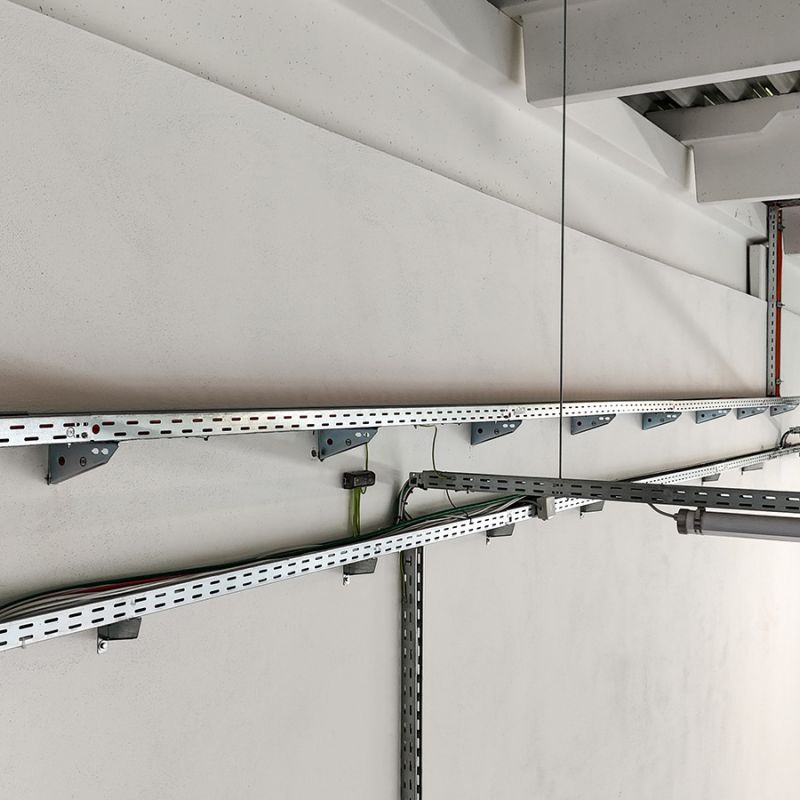

Hermi cable trays were installed at multiple levels.

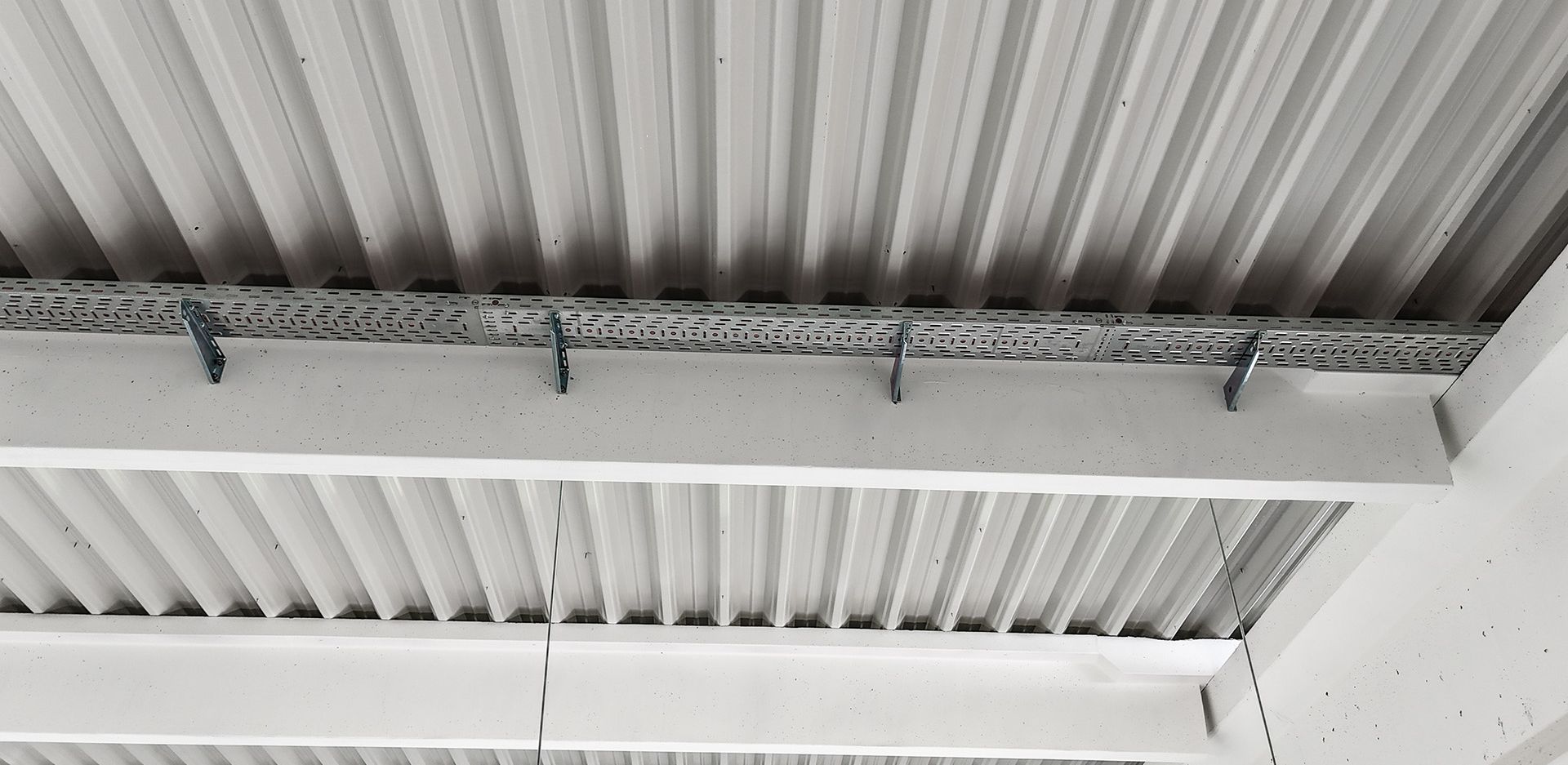

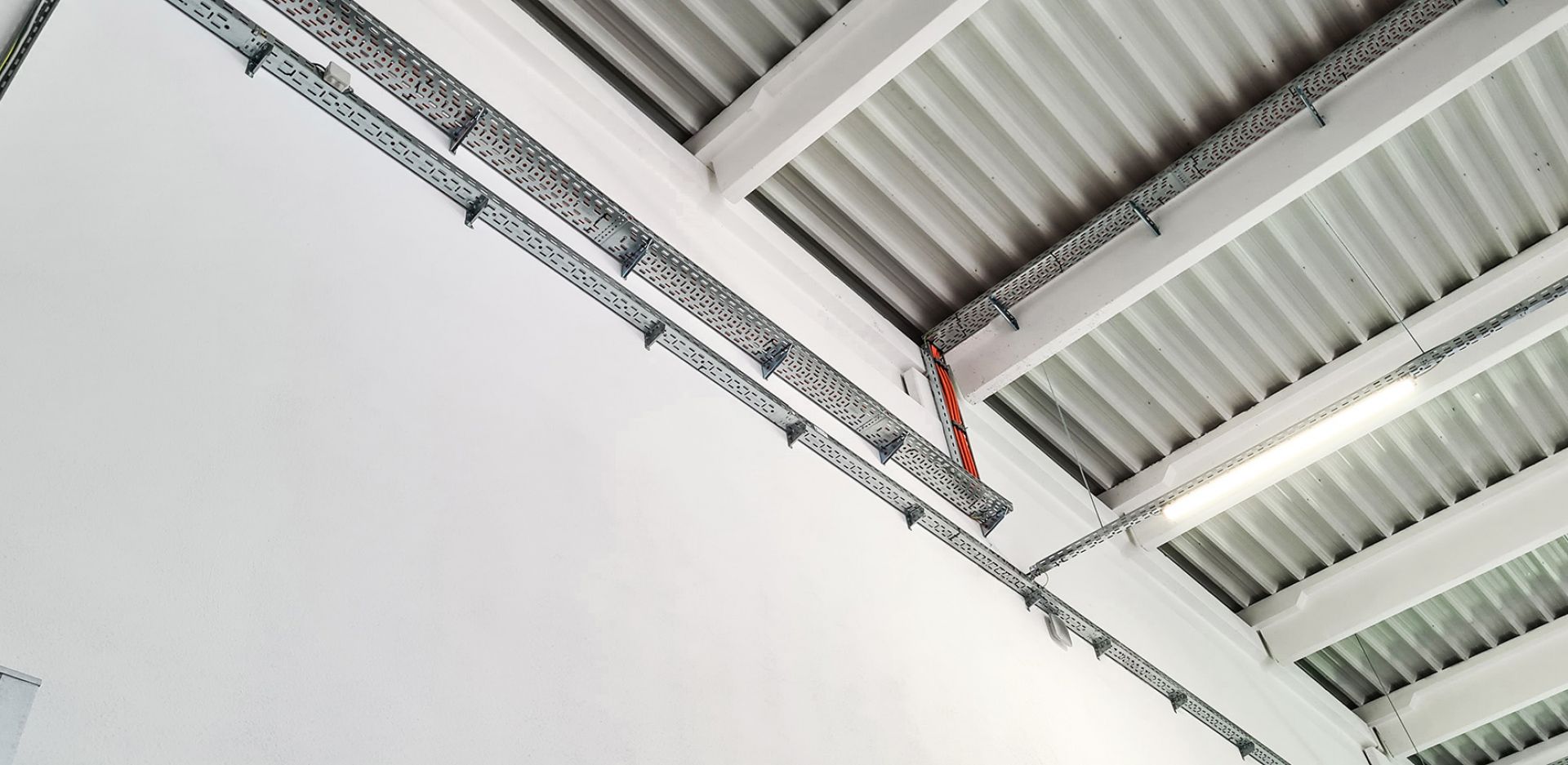

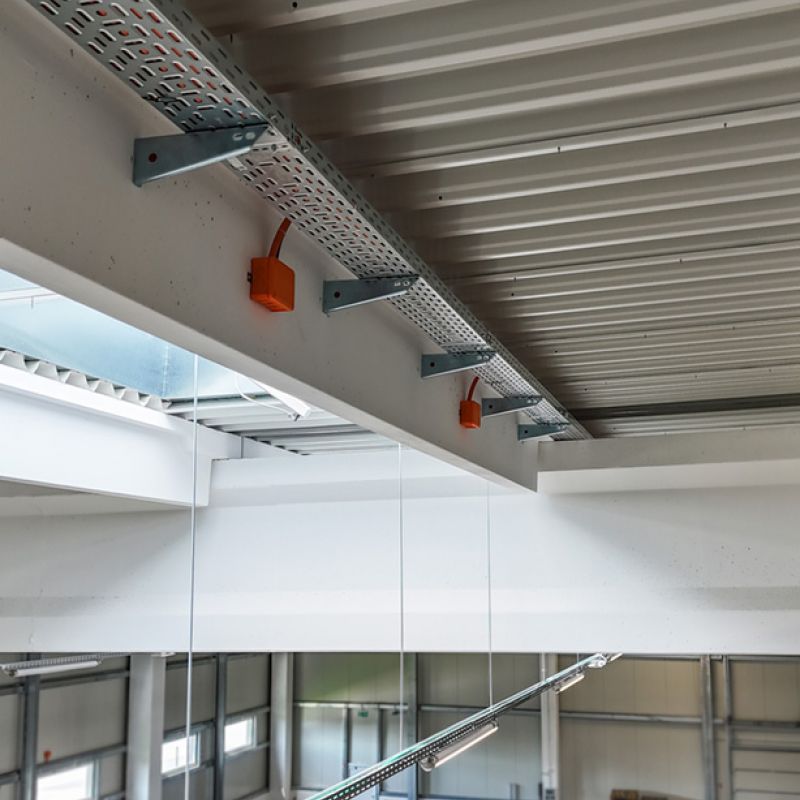

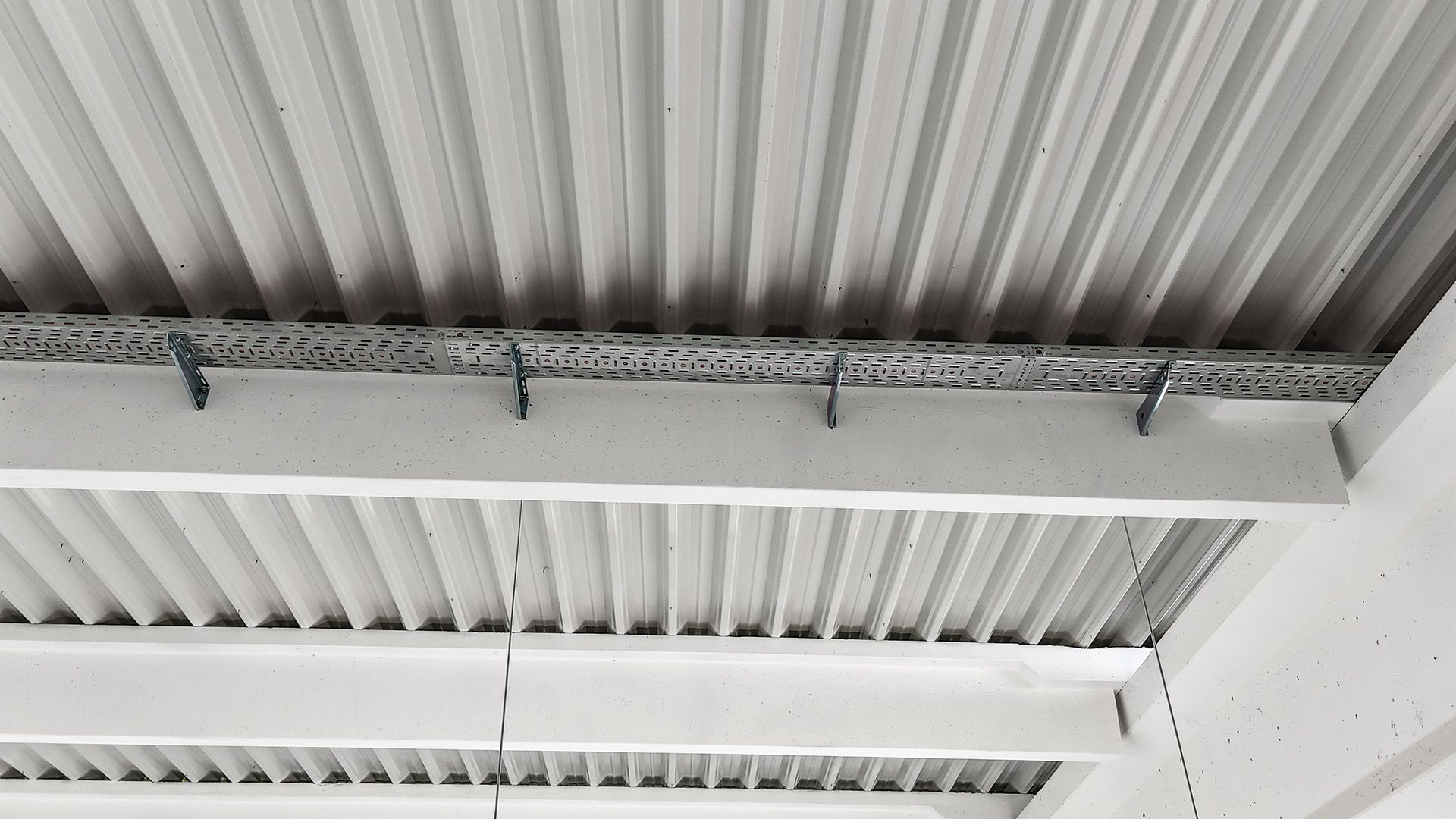

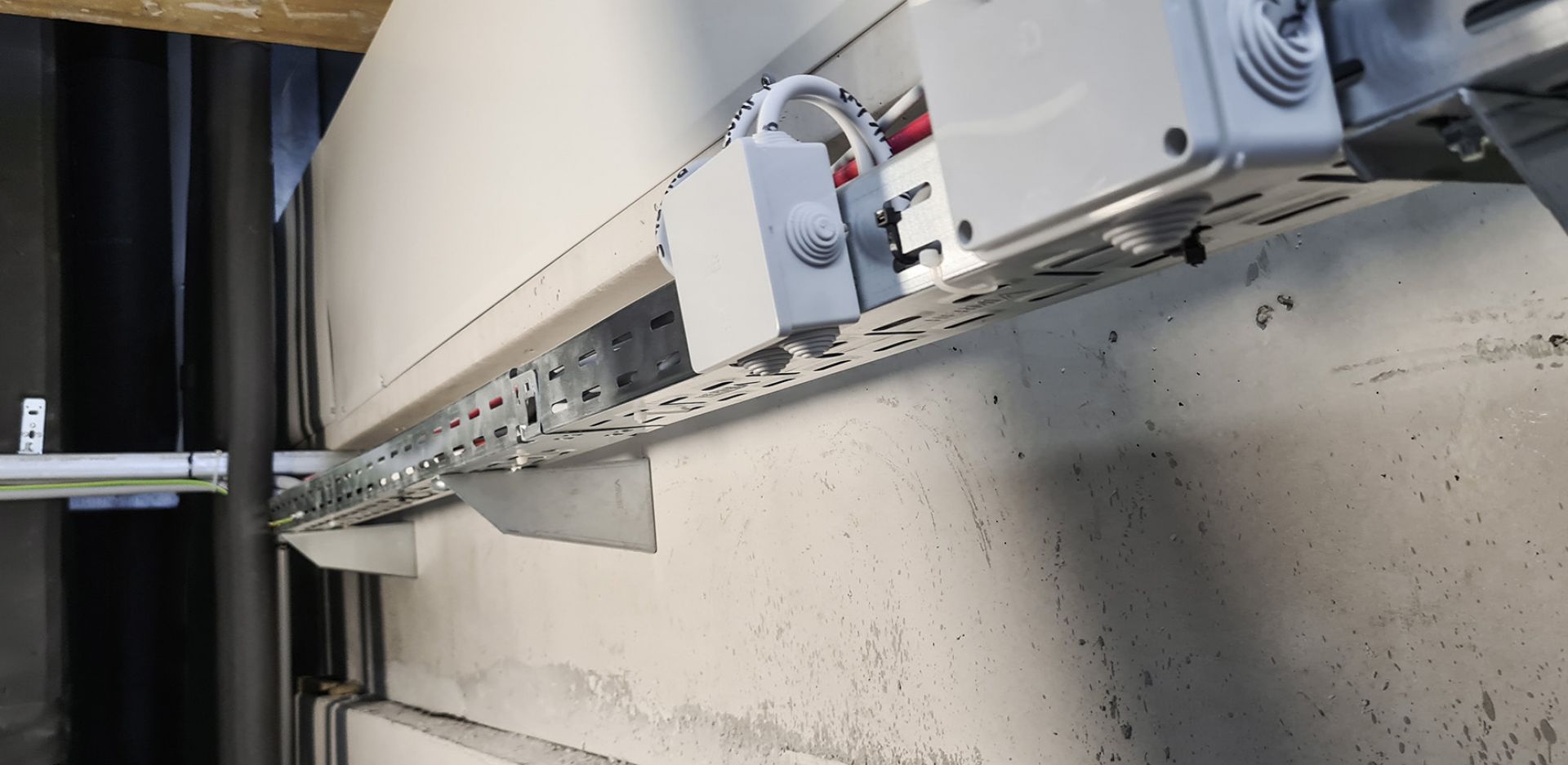

330 NKP-SNT wall brackets were used to mount the cable trays to the walls.
330 NKP-SNT wall brackets were used to mount the cable trays to the walls.
330 NKP-SNT wall brackets were used to mount the cable trays to the walls.
330 NKP-SNT wall brackets were used to mount the cable trays to the walls.
Given the emphasis on fire safety, Hermi’s E90 cable tray system was installed to create fire-resistant cable paths. This included KP E90 cable trays, KL E90 cable ladders, NKP-SNV E90 brackets, and PKB-KOB05 E90 cable clamps – ensuring the continued operation of critical systems in the event of a fire.

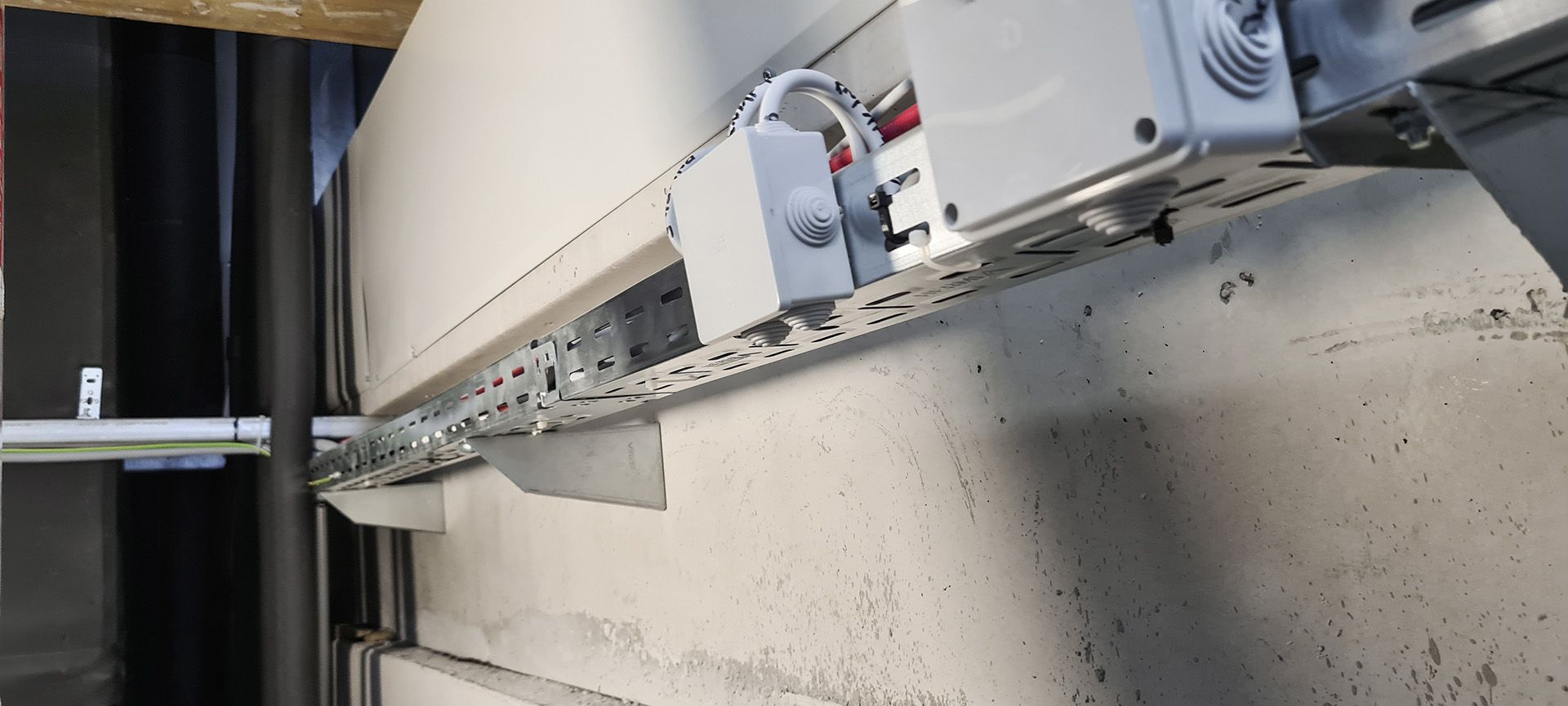

Fire-resistant cable paths were made using Hermi E90 trays, ladders, and other components.

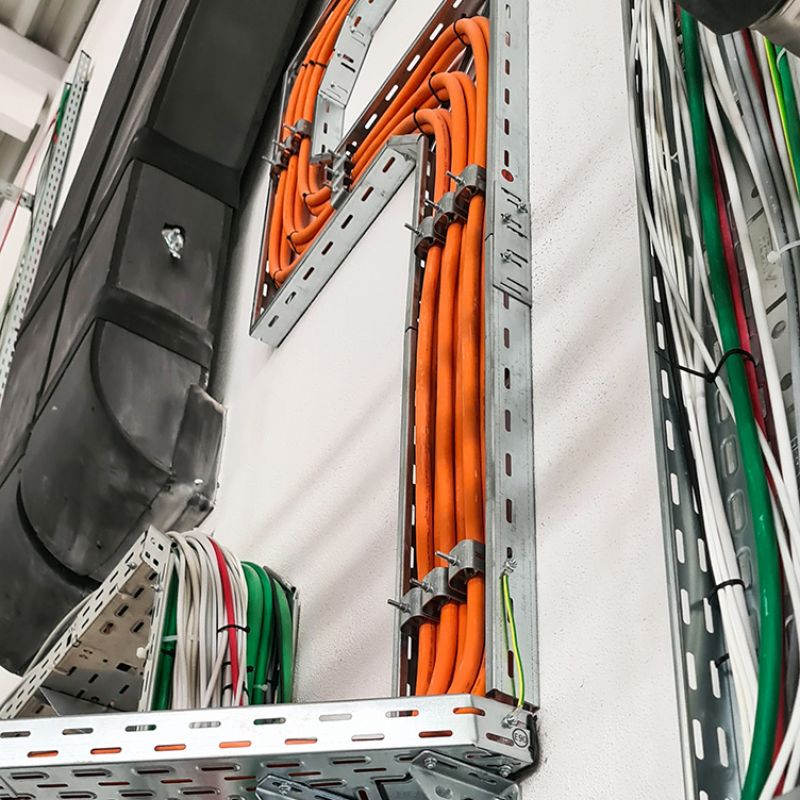

To follow the wall contours and transition between horizontal and vertical runs, the cable trays were cut as needed. The cut edges were protected with ZP-RT1 edge tape.
Edge tape protects sharp tray edges to prevent damage to the cables
Hermi’s lightning protection system also played a vital role in ensuring the building’s safety. The installation was carried out by Hermi installers.
They used 1,400 metres of stainless flat lightning conductor (90701) and 150 KON01 clamps to connect the conductors both underground and above ground.
They used 1,400 metres of stainless flat lightning conductor (90701) and 150 KON01 clamps to connect the conductors both underground and above ground.

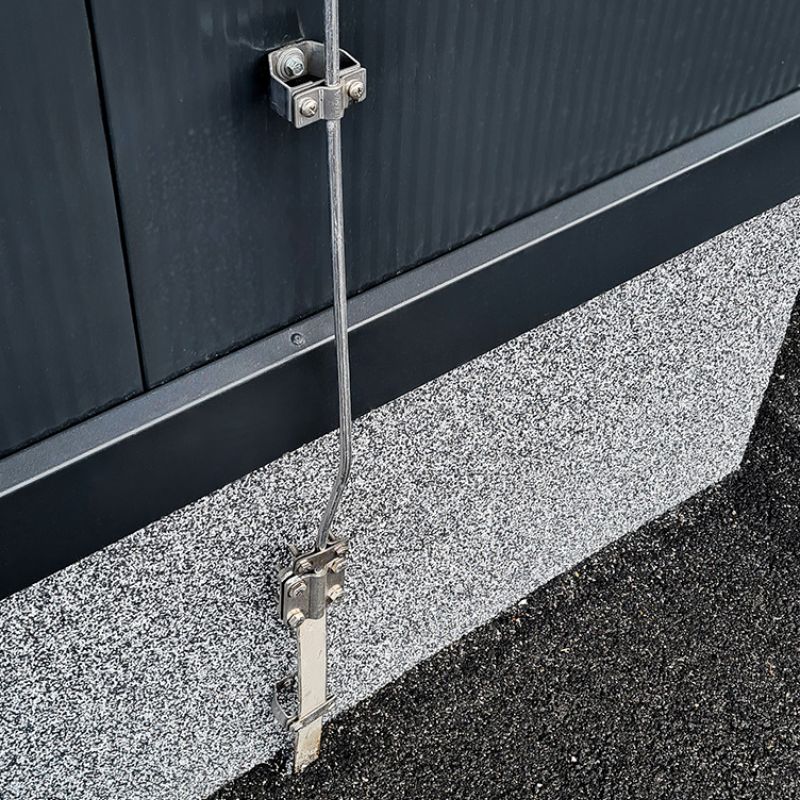

1,400 metres of stainless flat lightning conductor were used for earthing.
Approximately 850 metres of 8 mm diameter aluminium conductor (90250) were installed for the air-termination and down-conductor parts of the lightning protection system, using over 700 Hermi fasteners and about 180 clamps, including KON02, KON04A, KON05, and KON27.

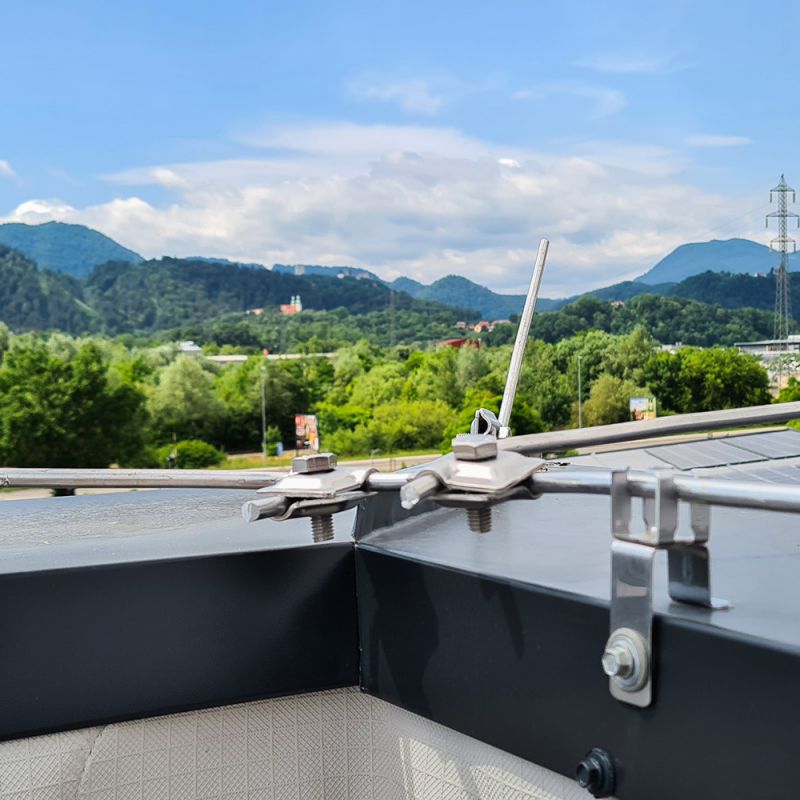

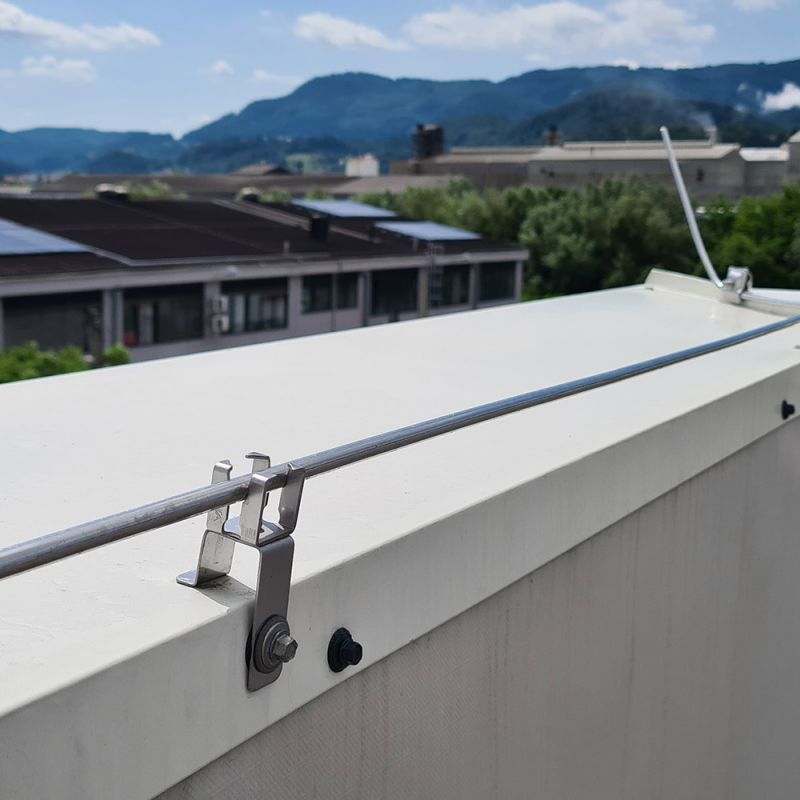

The round lightning conductor was laid on the attic and fixed using SON04 A roof fasteners.

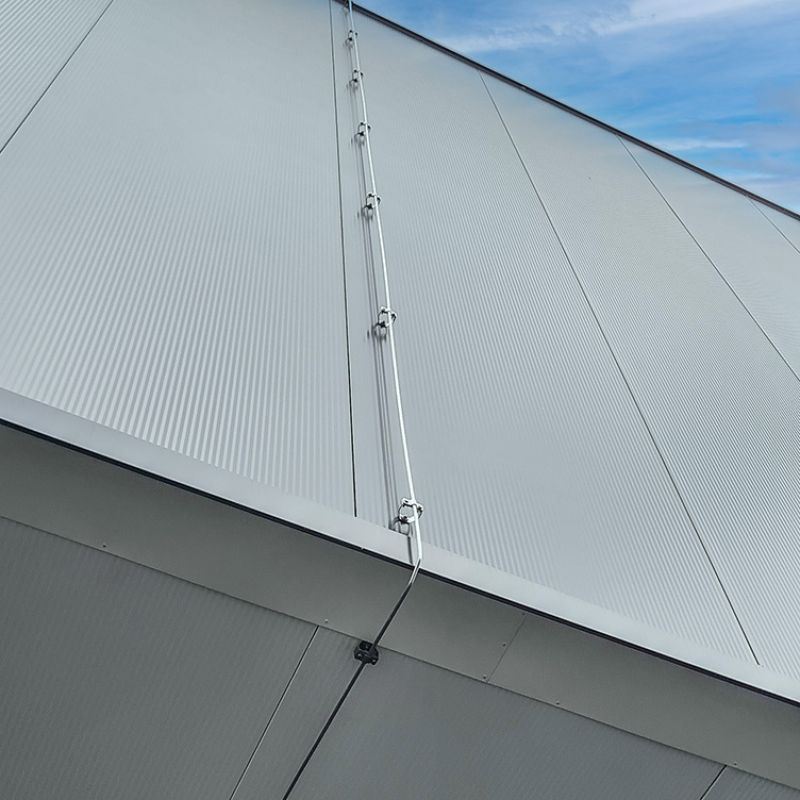

For distributing and positioning the conductors on the flat, gravel-covered roof, SON17 C roof fasteners (117227) were used. For installation on sheet metal roofing, SON16 roof ridge fasteners (11622, 11631) were used. On the sheet metal attic, stainless steel SON04 A fasteners (429) with an integrated double-click system secured the lightning conductor. Wall screws ZON01 (201250) were used to attach the conductors along the building façade. The conductors were fixed to the fasteners using a screw system.

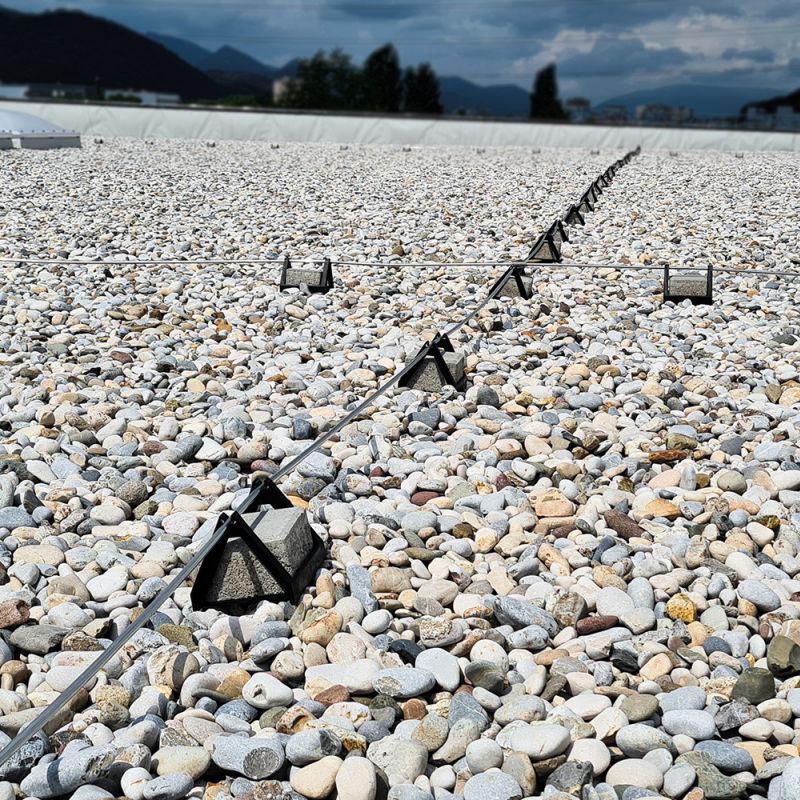

SON17 C roof fasteners were used for lightning protection installation on the flat, gravel-covered roof.

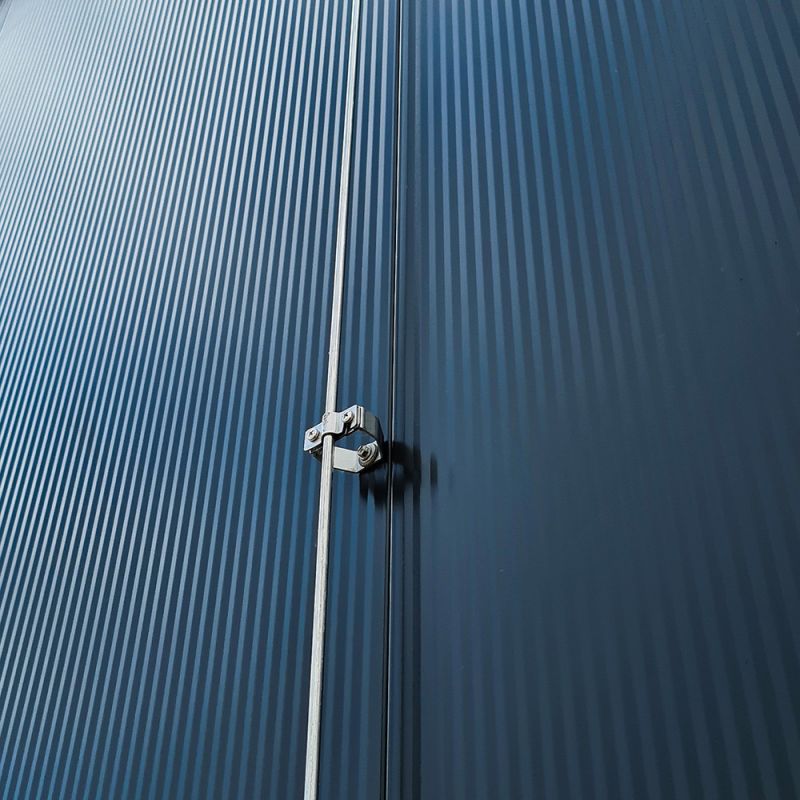

The ZON01 wall fasteners with the lightning conductor screwing system were used for fixing to the façade wall.
Automatic Servis is a Slovenian family-owned company that has been providing vending machine installation and management services since 1989. Under its own AS brand, the company offers a wide range of healthy, tasty, and high-quality products, and it is also introducing select items in glass packaging. The new warehouse facility in the industrial zone of Celje serves as a modern logistics hub for the efficient storage and distribution of raw materials, products, and vending machines, supporting supply operations across the Savinja, Koroška, Šaleška, and Zasavje regions.
The use of Hermi lightning protection systems and cable management solutions enabled fast, high-quality construction and ensured that Automatic Servis's new logistics centre is safeguarded against lightning strikes and fully equipped for the reliable operation of all electrical and communication systems. Thanks to their technical excellence, ease and speed of installation, and outstanding quality, Hermi solutions are the ideal choice for building and protecting modern warehouse, industrial, commercial, and other facilities.
The use of Hermi lightning protection systems and cable management solutions enabled fast, high-quality construction and ensured that Automatic Servis's new logistics centre is safeguarded against lightning strikes and fully equipped for the reliable operation of all electrical and communication systems. Thanks to their technical excellence, ease and speed of installation, and outstanding quality, Hermi solutions are the ideal choice for building and protecting modern warehouse, industrial, commercial, and other facilities.
